TCZF Non-leakage fluorine lining magnetic self-priming pump
Selection of color

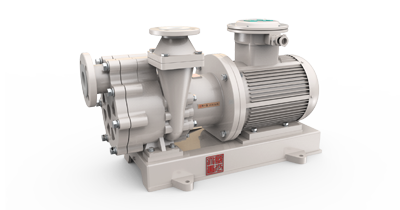

Tang silver

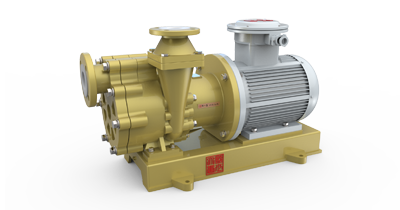

Tang yellow

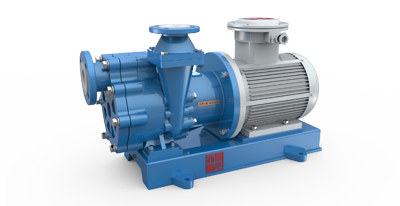

Tang Blue

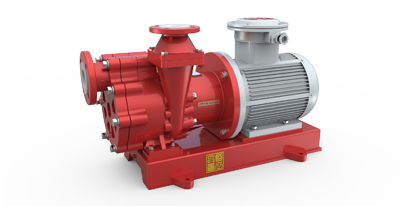

Tang red
Tang Green

Meaning TCZF80-65-160
T Code of enterprise
C Magnetic drive
Z Self-priming
F Fluoroplastic
80 The inlet dia is 80mm
65 The out let dia is 65mm
160 Nominal dia of impeller is 160mm

一、产品简介:

Product overview:
Non-leakage fluorine lining magnetic self-priming pump(shorter form: fluorine lining magnetic self-priming pump) is application of modern magnetic principles, which is a new type pump using the magnetic transmission of permanent magnet to implement torque’s contactless transmission, adopting design and structure of external mixing type axial backwater, thereof, when electric motor drives outer rotor(i.e. outer magnetic steel) assembly rotating , under magnetic field, magnetic line of force pass through distance sleeve drive inner rotor(i.e. inner magnetic steel) assembly rotating synchronously with impeller. The purpose of pumping media without leaking is due to the media closed in still distance sleeve. The pump body is composed by suction chamber, liquid storage chamber, volute casing, reflowing valve, air-liquid-isolating chamber, etc. Under centrifugal force after start-up, the rest liquid in suction chamber and the air in inlet pipeline would be stirred into air-liquid mixture, the mixture would be to air-liquid-isolating chamber through volute casing, within flow velocity slowing down, the air and liquid be separated, liquid outlet discharges the air, liquid returns to pump inside through reflowing valve. Through many circulations, air in liquid inlet is totally discharged, which makes pump inside being vacuum degree to get purpose of self-priming. This new design industrial pump, with many characteristics of full sealing, No leakage, No pollution and energy-efficient, completely solve the problem of shaft seal leakage of mechanical pump. Its performance already reaches international standard, thus can replace the expensive imported chemical pump.

Design features:
1. TCZF fluorine lining magnetic self-priming pump is the combination of non-leakage magnetic driven pump and self-priming centrifugal pump. It is a new type magnetic driven pump with characteristics of full sealing, no leakage, no pollution, strong self-priming and strong anti-acid, which is designed voluntarily by us.
2. The whole pump body be sintered and pressed of cast-iron with fluorine lining (PTFE, FEP, and PEA). The flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3. Fluoroplastic (PTFE, FEP and PFA) is the most superior anti-corrosive materials in the nowadays world, be free from corrosive media of any concentration of acid, lye, oxidants, etc.
4. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
5. Shaft sleeve, sleeve bearings be made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
6. The design of self-priming and gas-liquid mixture has strong function of self-priming, the height can reach 4 meters.
7. Enclosed static seal completely solves the problem of dielectric leakage.
8. No need of independent lubrication and cooling water, reducing energy consumption.
9. Direct coupling pull back design, No need to dismount pipe, easier maintenance.
10. Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
11. No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.

Application:
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery media of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.

Performance range:
Design pressure: 1.6Mpa
Flow: 2-200m3/h
Head: 15-125m
Power: 1.1-55kw

Applicable temperature: -20~120℃, can be up to 180℃ if using new material.

The optional accessories: preventive idling running device, monitoring of leakage device, monitoring of temperature device

Notes: Pls indicate during ordering if the proportion of delivering media is larger than 1.3mg/cm3. No idle running. No delivering media with particle or crystalline.

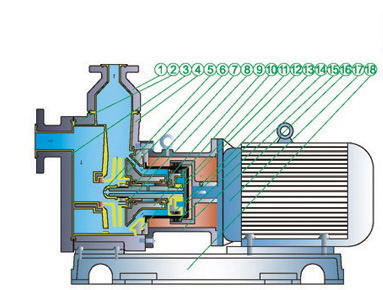

二、Structure drawing:

三、Performance Curve

四、Performance data shee:

Type Flow Head Efficiency Vector Inlet X Outlet Self-priming Rotating speed Power Weight
m3/h m % m mm 高度m 时间s r/min kw kg
TCFZ25-25-125 1.5 19 10 3 25x25 1 180 2900 2.2 65
3.6 18 20
6 16 30
TCZF40-32-125 5 22 35 3 40x32 1 180 2900 3 47
8 20 42
12 17 40
TCZF40-32-160 5 32 24 3.5 40x32 3 150 2900 4 160
8 30 48
12 28 45
TCZF50-40-125 8 22 35 3 50x40 1 180 2900 3 47
12 20 42
15 17 40
TCZF50-40-160 8 32 24 3.5 50x50 3 150 2900 4 160
12 30 48
15 28 45
TCZF50-40-200 8 47 24 3.5 50x40 3 150 2900 7.5 210
12 45 35
15 43 32
TCZF50-40-250 8 72 20 4 50x40 3 150 2900 15 320
12 70 26
25 65 39
TCZF65-50-160 15 32 40 4 65x50 3 200 2900 7.5 210
25 30 55
35 27 48
TCZF65-50-200 15 47 30 4 65x50 3 180 2900 11 300
25 45 42
35 38 44
TCZF65-50-250 15 72 30 4 65x50 3 180 2900 18.5 440
25 70 41
35 65 42
TCZF80-65-160 35 32 54 4.5 80x50 3 150 2900 11 284
50 30 58
60 25 48
TCZF580-50-200 35 47 45 4.5 80x50 3 180 2900 15 330
50 45 53
60 42 46
TCZF80-50-250 35 72 45 5 80x50 3 180 2900 30 550
50 70 50
60 65 43
TCZF100-80-160 65 32 54 6 100x80 3 250 2900 18.5 390
100 30 60
110 26 54
TCZF100-80-200 65 46 48 6 100x80 3 250 2900 30 500
100 45 55
110 40 48
