TICF no leakage fluorine lined magnetic pump
Selection of color

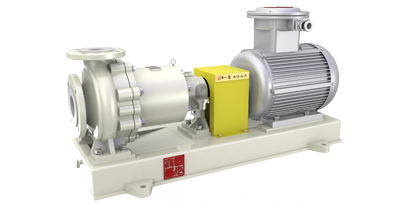

Tang silver

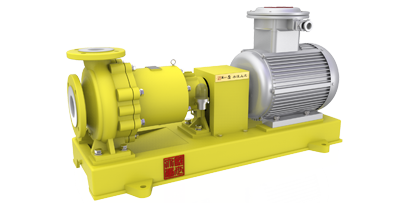

Tang yellow

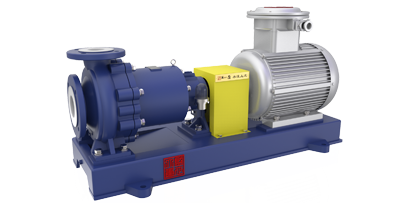

Tang Blue

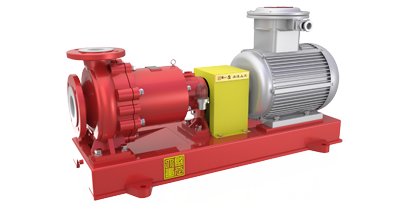

Tang red

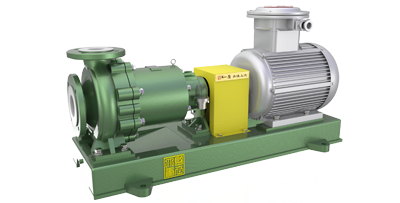

Tang Green

Meaning TICF80-65-160
T Code of enterprise
I Internatioanl standard centrifugal pump
C Magnetic driven
F Fluoroplastic
50 The inlet dia is 50mm
160 Nominal dia of impeller is 160mm

一、Product Introduction:

Product overview:
TICF no leakage fluorine lined magnetic pump (referred to as: lining fluorine high temperature magnetic pump) is the application of modern magnetic mechanics principle, using permanent magnet magnetic drive to achieve torque without contact transmission of a new type of pump is driven by the motor outer rotor (i.e., outside the magnet) rotation, through the action of a magnetic field lines through the isolation sleeve drives the inner rotor in the magnet) and impeller synchronous rotation, due to media enclosed in a static isolation sleeve, so as to achieve the purpose of pumping medium without leakage. Pump body and cover design of the double-layer cooling (heat) device, the high temperature magnetic pump can use of water and nitrogen on pump body cooling medium, to ensure access to pump the medium is maintained at a lower temperature, magnetic heat pump into steam and thermal insulation of the medium in the pump body, to ensure that the media in the conveying process not condensation, crystallization, vaporization, completely solve the mechanical pump seal leakage, condensation and crystallization, vaporization, and design of full seal, no leakage, no pollution, high temperature resistant, thermal insulation, energy efficient new industrial pump. Performance of the international standard, can replace the expensive stainless steel, special alloy materials, imported chemical pump.
1. TICF non-leakage fluorine lined magnetic pump a new type industrial pump with characteristics of high power, high head, full sealing, no leakage, no pollution and strong anti-acid, which is designed voluntarily by ourselves according to international standards of IS02858/DIN24256. Its technical index and performance has already reached domestic and international advanced level of similar products.
2. The whole pump body be sintered and pressed of cast-iron with fluorine lining (PTFE, FEP, PEA). The flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3.New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
4.Shaft sleeve, sleeve bearings be made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.Enclosed static seal completely solves the problem of dielectric leakage.No need of independent lubrication and cooling water, reducing energy consumption.
5.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
6.No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Application:Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range:design pressure:1.6Mpa、flow:2-400m3/h、head:12-125m、power:1.1-110kw;
Applicable temperature:①fluoroplastic material,-20~180℃,can transfer can transfer any concentration of acid and alkali medium;②engneering plastic,-20~80℃,can transfer dilute acid and alkali medium.
The optional accessories:preventive idling running device, monitoring of leakage device, monitoring of temperature device.
NOTES: Please indicate during ordring if the proportion of medium is largger than1.3g/cm3.No idling running. No delivering medium with particles or crystalline.

二、Structure drawing:


Part Material Part Material Part Material
1.pump body Ht200 lined F46 9.inner magnetic permenant magnetic/HT200linedF46 17.back bearing Gcr15
2.impeller nut Ht200 lined F46 10.back nut filled with F4 18.gland of back bearing HT200
3.impeller F50 11.distance sleeve PEEK/F46 19.pump coupling 45#
4.shaft SIC 12.outer magnetic permenant magnetic/HT200 20.diaphragm 304
5.shaft sleeve Impregnated graphite/SIC 13.connection HT200 21.electric coupling 45#
6.thrust collar SSIC 14.gland of front bearing HT200 22.shield 304
7.cover Ht200 lined F46 15.front bearing Gcr15 23.motor per client request
8.gasket  F4 16.bearing box HT200 24.base plate HT200

四、Performance Curve:

五、Performance data sheet:
