TCLF no leakage fluorine lined magnetic pipeline pump
Selection of color

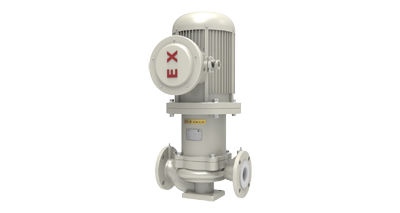

Tang silver

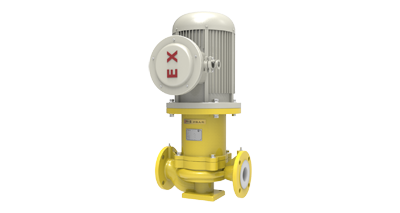

Tang yellow
Tang Blue

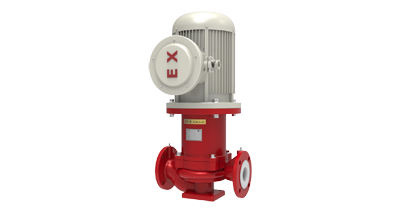

Tang red

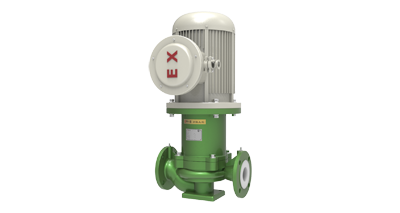

Tang Green

Meaning TCLF50-160
T Code of enterprise
C Magnetic driven
L Vertical
F Fluoroplastic
50 The inlet dia is 50mm
160 Nominal dia of impeller is 160mm

一、Product Introduction:

Product overview:
No leakage of fluorine magnetic pump (referred to as: magnetic pump) is the application of modern magnetic mechanics principle, a new type of pump contact without the use of magnetic drive torque of the permanent magnet, which is driven by the motor outer rotor (i.e. outer magnet) assembly rotates, the magnetic field through the magnetic field lines through the isolation sleeve to drive the inner rotor (i.e. the magnet assembly) and synchronous rotating impeller, the medium enclosed in static Isolation Kit, so as to achieve the purpose of pumping medium without leakage, completely solve the seal mechanical pump leakage pump with new industrial design full seal, no leakage, no pollution, high efficiency and energy saving performance. To meet international standards, can replace the expensive imported chemical pump.
Features:
1. TCLF no-leakage fluorine lining magnetic pipeline pump is the newest type non-leakage pipeline centrifugal pump, designed voluntarily according to TCF series, which both has advantages of pipeline centrifugal pump and magnetic driven pump.
2. The whole pump body be sintered and pressed of cast-iron with fluorine lining (PTFE, FEP, and PEA). The flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3. Fluoroplastic (PTFE, FEP and PFA) is the most superior anti-corrosive materials in the nowadays world, be free from corrosive medium of any concentration of acid, lye, oxidants, etc.
4. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
5. Shaft sleeve, sleeve bearings be made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
6. Enclosed static seal completely solves the problem of dielectric leakage.
7. No need of independent lubrication and cooling water, reducing energy consumption.
8. Direct coupling pull back design, No need to dismount pipe, easier maintenance.
9. Vertical mount, compact structure, low voice, small vibration, small occupation and stable operation.
10. No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Application: Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range:Design pressure:1.6Mpa、Flow:2-100m3/h、Head:12-50m、Power:1.1-30kw
Applicable temperature:-50~160℃
The optional accessories:preventive idling device, monitoring of temperature device, monitoring of leakage device
NOTES:Please indicate during ordering if the porportion of medium is largger than 1.3mg/cm3.No idling running. No delivering medium with particles or crystalline.

二、Structure drawing:

不锈钢磁力管道泵



三、Performance Curve:

Part Material Part Material Part Material
1.Plate HT200/lined F46 8.Pump shaft SIC 15.Inner rotor assembly HT200/lined F46/permanent magnetic
2.Pump body HT200/lined F46 9.Bearing Filled with F4 16.Outer rotor assembly HT200/lined F46
3.Impeller nut HT200/lined F46 10.Pump cover HT200/lined F46 17.Connection HT200
4.Impeller Fluoroplastic alloy 11.Distance sleeve assembly 1Cr19Ni9Ti/PEEK/PTFE 18.Motor Per client request



四、Performance data sheet:

model

Rotating speed
r/min

flow
m3/h
Head
m
effectiveness
NPSH
m
Import X export
mm
power
kw
weight
kg
TCL25-125 2900 1.5 22 18 2.5 25×20 1.1 27
2 20 20 2.5
3.2 18.5 24 3
TCL25-160 2900 1.5 34.3 19 2.5 25×20 1.5 36
2 32 22 2.5
3.2 29.6 25 3
TCL25-200 2900 1.5 52.5 18 2.5 25×20 3 51
2 50 20 2.5
3.2 48 22 3
TCL25-250 2900 1.5 82 12 2.5 25×20 7.5 63
2 80 18 2.5
3.2 78.5 26 3
TCL32-125 2900 2 22 20.5 2.5 32×20 1.5 30
3.2 20 20 2.5
5.5 18.5 18 3
TCL32-160 2900 2 34.3 20.5 2.5 32×20 2.2 35
3.2 32 20 2.5
5.5 29.6 18 3
TCL32-200 2900 2 52.5 32 2.5 32×20 4 61
3.2 50 36 2.5
5.5 48 34 3
TCL32-250 2900 2 82 26 2.5 32×20 7.5 75
3.2 80 30 2.5
5.5 78.5 28 3
TCL40-125 2900 4.4 22 16 2.5 40×25 1.5 35
6.3 20 20 2.5
8.3 18.5 23 3
TCL40-160 2900 4.4 34.3 30 2.5 40×25 3 40
6.3 32 31 2.5
8.3 29.6 32 3
TCL40-200 2900 4.4 52.5 26 2.5 40×25 5.5 66
6.3 50 33 2.5
8.3 48 32 3
TCL40-250 2900 4.4 82 24 2.5 40×25 11 95
6.3 80 28 2.5
8.3 78.5 28 3
TCL50-125 2900 7.5 22 43 2 50×32 2.2 44
12.5 20 51 2
15 18.5 49 2.5
TCL50-160 2900 7.5 34.3 35 2 50×32 3 61
12.5 32 47 2
15 29.6 47 2.5
TCL50-200 2900 7.5 52.5 28 2 50×32 7.5 113
12.5 50 40 2
15 48 48 2.5
TCL50-250 2900 7.5 82 23 2 50×32 11 180
12.5 80 33 2
15 78.5 36.5 2.5
TCL65-125 2900 15 21.8 46 2 65×50 3 80
25 20 56 2
30 18.5 65 2.5
TCL65-160 2900 15 35 46 2 65×50 5.5 97
25 32 56 2
30 30 65 2.5
TCL65-200 2900 15 53 34 2 65×40 11 120
25 50 46 2
30 47 50 2.5
TCL65-250 2900 15 82 33 2 65×40 18.5 203
25 80 48 2
30 78 50 2.5
TCL65-315 2900 15 127 28 2.5 65×40 30 345
25 125 39 2.5
30 123 42.5 3
TCL80-125 2900 30 22.5 52 3 8
