TCGB Non-leakage magnetic heat pump
Selection of color
Tang silver
Tang yellow
Tang Blue
Tang red
Tang Green

Model significance TCG(B)80-65-160
T Enterprise Code
C Magnetic drive
G High temperature
B Insulation Type
80 Import caliber 80mm
65 Outlet aperture 65mm
160 Nominal diameter of the impeller 160mm

一、Product Introduction:

Product overview:
Non-leakage magnetic heat pump(shorter form: magnetic heat pump) is application of modern magnetic principles, which is a new type pump using the magnetic transmission of permanent magnet to implement torque’s contactless transmission, that is, when electric motor drives outer rotor(i.e. outer magnetic steel) assembly rotating , under magnetic field, magnetic line of force pass through distance sleeve drive inner rotor(i.e. inner magnetic steel) assembly rotating synchronously with impeller. The purpose of pumping media with No leaking is due to the media closed in still distance sleeve. The heat retaining equipment be settled on pump body and pump cover, which allow use steam to heat media in pump body, ensure media won’t condense, crystallize or gasify, completely solve the problem of shaft seal leakage 、condensation、crystallization and gasification of mechanical pump. This new design industrial pump, with many characteristics of full sealing, No leakage, No pollution and energy-efficient, completely solve the problem of shaft seal leakage of mechanical pump. Its performance already reaches international standard, thus can replace the expensive imported chemical pump.

Design features:
1. TCB non-leakage magnetic heat pump is a new type industrial heat pump of full sealing, no leakage, no pollution, which is designed voluntarily by us.
2. The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
3. Two-ply heat retaining equipment be settled on pump body and pump cover, which allow use steam to heat media in pump body, ensure media won’t condense, crystallize or gasify.
4. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
5. Shaft sleeve, sleeve bearings be made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
6. Enclosed static seal completely solves the problem of dielectric leakage.
8. Direct coupling pull back design, No need to dismount pipe, easier maintenance.
9. Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
10. No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.

Application:
Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery media of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.

Performance range:Design pressure: 1.6Mpa、Flow: 2-200m3/h 、Head: 12-125m、 Power: 1.1-55kw

Applicable temperature: -30~120℃, can be up to 350℃ if using new material.

The optional accessories: preventive idling running device, monitoring of leakage device, monitoring of temperature device

Notes: Pls indicate during ordering if the proportion of delivering media is larger than 1.3mg/cm3. No idle running. No delivering media with particle or crystalline.

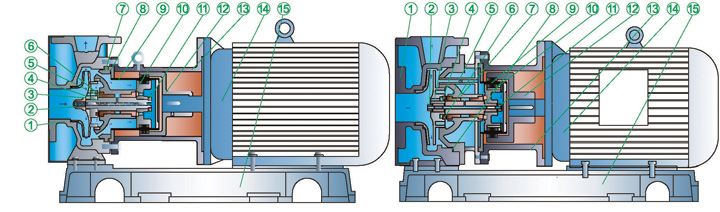

二、Structure drawing:



Part Material Part Material Part Material
pump body 304/316/321 thrust collar 304/316/321 Back nut 304/316/321
impeller nut 304/316/321 pump cover 304/316/3121 outer rotor assembly permenant magnet/HT200
impeller 304/316/321 gasket PTFE connecting HT200
pump shaft 304/316/321 distance sleeve 304/316/321 motor per clients requested
bearing hard graphite/SIC inner rotor assembly 304/316/321/permenant magnet base plate HT200



三、Performance Curve:

四、Performance data sheet:

五、Products real picture:
