TIJU(F)full plastic anti-corrosion abrasion resistance centrifugal pump

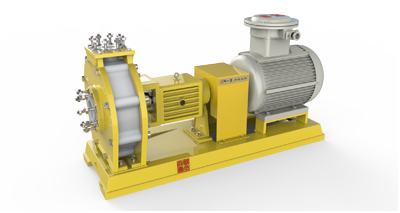

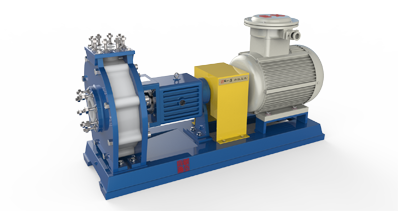

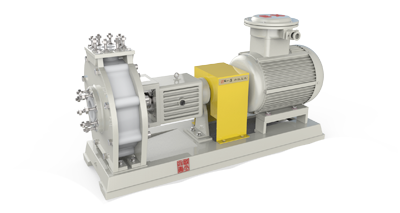

Selection of color
Tang silver
Tang yellow
Tang Blue
Tang red
Tang Green



Meaning TIJU(F)80-65-160
T Code of enterprise
IJ Anti-corrosion abrasion resistance
U Engneering plastic
F Fluoroplastic
80 The inlet dia is 80mm
65 The outlet dia is 65mm
160 Nominal dia of impeller is 160mm

一、Product Introduction:

TIJU(F)full plastic anti-corrosion abrasion resistance centrifugal pump is my company for non-ferrous smelting industry, carefully designed model low-speed slurry pump, is made of ultra high molecular weight polyethylene engineering plastics, there are collected with corrosion performance of the best of the fluorine plastic material, which has excellent corrosion resistance, and has very good wear resistance and excellent impact resistance performance, can adapt to various working conditions of pump, such as the transportation of acid, alkaline liquid or slurry, corrosive slurry, sewage and other. The pump is not only resistant to corrosion and wear resistance, the use of a wide range, especially with high solid content of corrosive medium (containing solid particles weight concentration is less than or equal to 20%, solid particles diameter is less than or equal to 1.0 mm).
Features:
1.TIJU(F)full plastic anti-corrosion abrasion resistance centrifugal pump is designed and manufactured according to standard of GB/T 8688-2013 and tech of non-metal pump.
2.Pump shell and the pump cover are internally embedded with metal supporting skeleton, which restrict the plastic pump casing axial thermal expansion and axial compression permanent deformation.
3.Impeller adopts CFD computational fluid dynamics design of hydraulic components module design and precision casting, which ensures the reliable torque transmission. The closed or semi open structure, channel optimization design, high efficiency, low NPSHr value and good interchangeability, ensure the pump flow and head stability.
4.Improving dynamic seal makes the service life of seal 40 ~ 80% longer than the normal seal working life under the same working condition, and the service life can be increase of 40 ~ 80% of the time. Can custermized API682 standard of seal type and flushing plan.
5.Rotating ring, shaft sleeve, rolling bearings are made of crystal SIC,tungsten carbide, etc, with good characteristic of superior wear resistance, high temperature resistance, which guarantee the pump’s working life.
6.Self balance structure of pump axial force is using fluid hydraulics principle, through the balance hole and the balance disc structure adjustment to balance the axial force. The the thrust plate of rolling bearing withstand unbalanced axial force in the starting and stopping moment, but its axial force is almost zero during working, greatly improving the stability of the operation of the machine.
7.Direct coupling pull back design, no need to dismount pipe, easier maintenance.
8.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
Application:
1.Fertilizer industry:slute acid, waste water, sea water, fluorosilicic acid,phosphric acid fluid, etc, transfering
2.Non-ferrous metal smelting industry
3.Chemical industry:all kinds of pure liquids or fluids of sulfuric acid,hydrochloric acid,alkali, oil.
4.Chlor-alkali industry
5.Water treatment industry:pure water, high purity water, waste water, etc.
6.Iron and stainless enterprises
7.Coal industry:corrosive liquids and coal slurry transfering.
Performance range:design pressure:1.6mpa;diameter:~300mm;flow:5~1600m3/h;head:5~80m power:0.75~250kw
Applicable temperature:UHMW-PE material≤100℃;PTFE material≤150℃

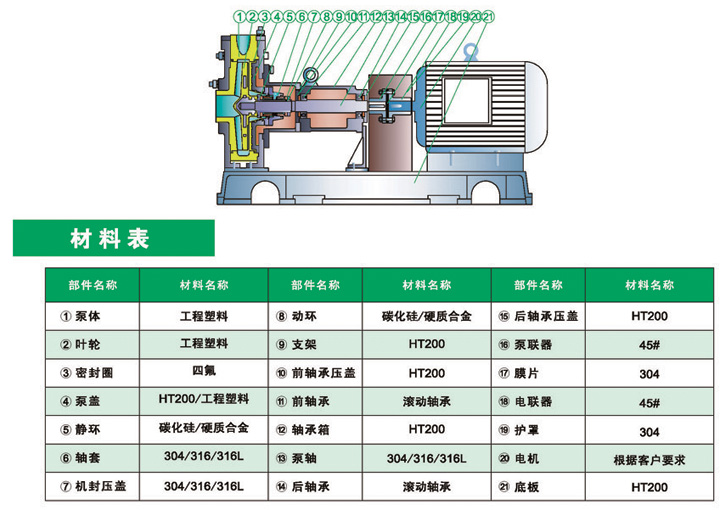

二、Structure drawing:

Part Material Part Material Part Material
1.pump body Engneering plastic 8.dynamic ring SSIC/hard alloy 15.gland of back bearing HT200
2.impeller Engneering plastic 9.bracket HT200 16.pump coupling 45#
3.gasket PTFE 10.gland of front bearing HT200 17.diaphragm 304
4.pump cover HT200/Engneering platic 11.front bearing rolling bearing 18.electric coupling 45#
5.static ring SSIC/hard alloy 12.bearing box HT200 19.shield 304
6.shaft sleeve 304/316/316L 13.pump shaft 304/316/316L 20.motor per client request
7.seal gland 304/316/316L 14.back bearing rolling bearing 21.base plate 304

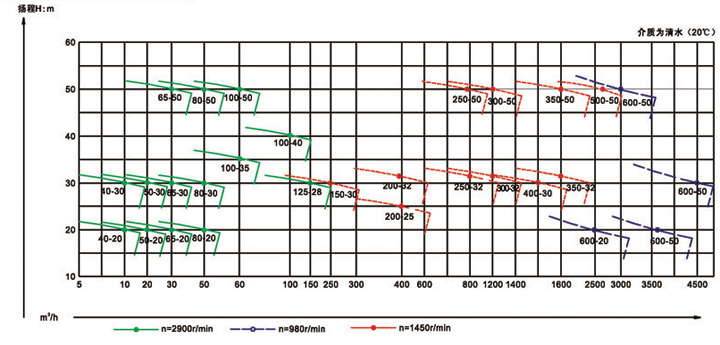

三、Performance Curve:

四、Performance data sheet:

model

Rotating speed
r/min

flow
m3/h
Head
m
effectiveness
NPSH
m
Import X export
mm
power
kw
weight
kg
TJU25-20-125 2900 2 20.5 25 2.5 25×20 1.1 75
3.2 20 32 2.5
5.5 18 46 2.5
1450 0.75 5.4 15 2.5 0.37 55
1 5 17 2.5
1.6 4.6 21 3
TJU25-20-160 2900 1.5 34.3 19 2.5 25×20 1.5 80
2 32 22 2.5
3.2 29.6 25 3
1450 0.75 8.5 16 2.5 0.37 55
1 8 18 2.5
1.6 7.5 24 3
TJU25-20-200A 2900 1.5 42 28 2.5 25×20 3 124
2 40 32 2.5
3.2 38 30 3
1450 0.75 10.5 15 2.5 0.55 90
1 10 18 2.5
1.6 9.5 24 3
TJU25-20-200 2900 1.5 52.5 18 2.5 25×20 4 124
2 50 20 2.5
3.2 48 22 3
1450 0.75 13.1 15 2.5 0.75 90
1 12.5 18 2.5
1.6 12 24 3
TJU25-20-250A 2900 1.5 62 26 2.5 25×20 7.5 225
2 60 30 2.5
3.2 58 28 3
1450 0.75 15.5 15 2.5 1.5 118
1 15 18 2.5
1.6 14.5 24 3
TJU25-20-250B 2900 1.5 72 26 2.5 25×20 5.5 225
2 70 30 2.5
3.2 68 28 3
1450 0.75 18 15 2.5 1.1 118
1 17.5 18 2.5
1.6 17 24 3
TJU25-20-250 2900 2 80 12 2.5 25×20 7.5 225
3.6 80 18 2.5
5.5 78.5 26 3
1450 0.75 20.5 11 2.5 1.5 118
1 20 16 2.5
1.6 19.5 24 3
TJU32-20-125 2900 2 22 25 2.5 32×20 1.5 75
3.2 20 32 2.5
5.5 18.5 46 3
1450 1 5.4 24 2.5 0.55 45
1.6 5 22 2.5
2.75 4.6 22.5 3
TJU32-20-160 2900 2 34.3 25 2.5 32×20 2.2 98
3.2 32 24 2.5
5.5 29.6 21.5 3
1450 1 8.5 18 2.5 0.55 55
1.6 8 22 2.5
2.75 7.5 24.5 3
TJU32-20-200A 2900 2 42 32 2.5 32×20 4 140
3.2 40 36 2.5
5.5 38 34 3
1450 1 10.5 25 2.5 0.75 78
1.6 10 28 2.5
2.75 9.5 26 3
TJU32-20-200 2900 2 52.5 22 2.5 32×20 4 140
3.2 50 26 2.5
5.5 48 28.5 3
1450 1 13.1 15 2.5 0.75 78
1.6 12.5 18 2.5
2.75 12 19.5 3
TJU32-20-250A 2900 2 62 26 2.5 32×20 7.5 160
3.2 60 30 2.5
5.5 58 28 3
1450 1 15.5 15 2.5 1.1 98
1.6 15 18 2.5
2.75 14.5 24 3
TJU32-20-250B 2900 2 72 26 2.5 32×20 7.5 160
3.2 70 30 2.5
5.5 68 28 3
1450 1 18 15 2.5 1.1 98
1.6 17.5 18 2.5
2.75 17 24 3
TJU32-20-250 2900 2 82 16 2.5 32×20 11 160
3.2 80 20 2.5
5.5 78.5 23 3
1450 1 20.5 15 2.5 1.5 98
1.6 20 18 2.5
2.75 19.5 24 3
TJU40-25-125 2900 6.3 22 30 2.5 40×25 2.2 75
8 32 31 2.5
10 30 32 3
1450 2.2 5.4 26 2.5 0.55 42
3.2 5 28 2.5
4.2 4.6 32 3
TJU40-25-160 2900 6.3 32 30 2.5 40×25 3 124
8 32 31 2.5
10 30 32 3
1450 2.2 8.5 23 2.5 0.55 78
3.2 8 25 2.5
4.2 7.5 28 3
TJU40-25-200A 2900 4.4 42 26 2.5 40×25 4 170
6.3 40 33 2.5
8.3 38 32 3
1450 2.2 10.5 25 2.5 0.55 102
3.2 10 28 2.5
4.2 9.5 26 3
TJU40-25-200 2900 6.3 52.5 20 2.5 40×25 5.5 170
8 50 23 2.5
10 48 30 3
1450 2.2 13.1 25 2.5 1.1 102
3.2 12.5 28 2.5
4.2 12 26 3
TJU40-25-250A 2900 4.4 62 24 2.5 40×25 7.5 255
6.3 60 28 2.5
8.3 58 28 3
1450 2.2 15.5 20 2.5 1.1 155
3.2 15 24 2.5
4.2 14.5 22 3
TJU40-25-250B 2900 4.4 72 24 2.5 40×25 11 255
6.3 70 28 2.5
8.3 68 28 3
1450 2.2 18 20 2.5 1.5 155
3.2 17.5 24 2.5
4.2 17 22 3
TJU40-25-250 2900 4.4 82 24 2.5 40×25 11 255
6.3 80 28 2.5
8.3 78.5 28 3
1450 2.2 20.5 20 2.5 1.5 155
3.2 20 24 2.5
4.2 19.5 22 3
TJU50-32-125 2900 7.5 22 43 2 50×32 3 110
12.5 20 51 2
15 18.5 49 2.5
1450 3.75 5.4 40 2 0.55 55
6.3 5 45 2
7.5 4.6 42 2.5
TJU50-32-160 2900 7.5 34.3 35 2 50×32 4 135
12.5 32 47 2
15 29.6 47 2.5
1450 3.72 8.5 30 2 0.55 68
6.3 8 40 2
7.5 7.5 40 2.5
TJU50-32-200A 2900 7.5 42 28 2 50×32 5.5 180
12.5 40 39 2
15 38 43 2.5
1450 3.7 10.5 23 2 0.75 170
6.3 10 33 2
7.5 9.5 36 2.5
TJU50-32-200 2900 7.5 52.5 28 2 50×32 7.5 180
12.5 50 40 2
15 48 48 2.5
1450 3.7 13.1 22 2 1.1 170
6.3 12.5 33 2
7.5 12 40 2.5
TJU50-32-250A 2900 7.5 62 23 2 50×32 7.5 255
12.5 60 33 2
15 58 36.5 2.5
1450 3.75 15.5 17 2 1.1 155
6.3 15 27 2
7.5 14.5 31 2.5
TJU50-32-250B 2900 7.5 72 23 2 50×32 15 255
12.5 70 33 2
15 68 36.5 2.5
1450 3.75 18 17 2 2.2 155
6.3 17.5 27 2
7.5 17 31 2.5
TJU50-32-250 2900 7.5 82 23 2 50×32 18.5 255
12.5 80 33 2
15 78.5 36.5 2.5
1450 3.75 20.5 17 2 2.2 155
6.3 20 30 2
7.5 19.5 33 2.5
TJU65-50-125 2900 15 21.8 46 2 65×50 4 135
25 20 61 2
30 18.5 67 2.5
1450 7.5 5.35 46 2 0.55 75
12.5 5 61 2
15 4.7 67 2.5
TJU65-50-160 2900 15 35 46 2 65×50 5.5 155
25 32 56 2
30 30 65 2.5
1450 7.5 8.8 40 2 1.1 145
12.5 8 51 2
15 7.2 60 2.5
TJU65-40-200A 2900 15 42 41 2 65×40 7.5 210
25 40 52 2
30 38 53.5 2.5
1450 7.5 10.5 35 2 1.5 132
12.5 10 46 2
15 9.5 47.5 2.5
TJU65-40-200 2900 15 53 35 2 65×40 11 210
25 50 51 2
30 47 48 2.5
1450 7.5 13.2 30 2 1.5 132
12.5 12.5 46 2
15 11.8 42 2.5
TJU65-40-250A 2900 15 62 34 2 65×40 15 360
25 60 46 2
30 58 50 2.5
1450 7.5 15.5 28 2 2.2 240
12.5 15 39 2
15 14.5 43 2.5
TJU65-40-250B 2900 15 72 34 2 65×40 18.5 360
25 70 46 2
30 68 50 2.5
1450 7.5 18 28 2 3 240
12.5 17.5 39 2
15 17 43 2.5
TJU65-40-250 2900 15 82 33 2 65×40 22 360
25 80 48 2
30 78 50 2.5
1450 7.5 21 28 2 4 240
12.5 20 43 2
15 19.4 45 2.5
TJU65-40-315A 2900 15 105 28 2.5 65×40 30 480
25 100 39 2.5
30 98 42.5 3
1450 7.5 26.2 22 2.5 5.5 260
12.5 25 33 2.5
15 24.5 37 3
TJU65-40-315 2900 15 127 28 2.5 65×40 37 480
25 125 39 2.5
30 123 42.5 3
1450 7.5 32.3 22 2.5 5.5 260
12.5 32 33 2.5
15 31.7 37 3
TJU80-65-125 2900 30 22.5 52 3 80×65 7.5 195
50 20 65 3
60 18 70 3.5
1450 15 5.6 50 2.5 1.1 125
25 5 64 2.5
30 4.5 68 3
TJU80-65-160 2900 30 36 60 2.5 80×65 11 228
50 32 64 2.5
60 29 53 3
1450 15 9 58 2.5 1.5 145
25 8 62 2.5
30 7.2 50 3
TJU80-50-200A 2900 30 42 53 2.5 80×50 15 250
50 40 63 2.5
60 38 62 3
1450 15 10.5 44 2.5 2.2 155
25 10 57 2.5
30 9.5 58 3
TJU80-50-200 2900 30 53 53 2.5 80×50 15 250
50 50 63 2.5
60 47 55 3
1450 15 13.2 49 2.5 3 155
25 12.5 57 2.5
30 11.8 48 3
TJU80-50-250A 2900 30 62 44 2.5 80×50 22 480
50 60 57 2.5
60 58 59 3
1450 15 15.5 39 2.5 3 370
25 15 51 2.5
30 14.5 52.5 3
TJU80-50-250B 2900 30 72 44 2.5 80×50 30 480
50 70 57 2.5
60 68 59 3
1450 15 18 39 2.5 4 400
25 17.5 51 2.5
30 17 52.5 3
TJU80-50-250 2900 30 84 48 2.5 80×50 37 480
50 80 56 2.5
60 75 50 3
1450 15 21 39 2.5 5.5 400
25 20 51 2.5
30 18.8 52.5 3
TJU80-50-315A 2900 30 105 39 2.5 80×50 45 560
50 100 51 2.5
60 98 52.5 3
1450 15 26.2 35 2.5 7.5 476
25 25 46 2.5
30 24.5 47.5 3
TJU80-50-315 2900 30 128 39 2.5 80×50 55 560
50 125 51 2.5
60 123 52.5 3
1450 15 32.5 35 2.5 11 476
25 32 46 2.5
30 31.5 47.5 3
TJU100-80-125 2900 60 24 64 4 100×80 11 245
100 20 65 4.5
120 16.5 63 5
1450 30 6 60 2.5 1.5 198
50 5 64 2.5
60 4 63 3
TJU100-80-160 2900 60 36 60 3.5 100×80 18.5 250
100 32 70 4
120 28 65 5
1450 30 9.2 58 2 3 192
50 8 69 2.5
60 6.8 68 3.5
TJU100-65-200A 2900 60 42 63 3 100×65 30 480
100 40 72 3.6
120 38 71 4.8
1450 30 10.5 60 2 4 180
50 10 68 2
60 9.5 63 2.5
TJU100-65-200 2900 60 54 63 3 100×65 37 256
100 50 68 3.6
120 47 56 4.8
1450 30 13.5 60 2 5.5 246
50 12.5 68 2
60 11.8 63 2.5
TJU100-65-250A 2900 60 62 57 3.5 100×65 37 382
100 60 68 3.8
120 58 67 4.8
1450 30 15.5 50 2 5.5 342
50 15 63 2
60 14.5 64 2.5
TJU100-65-250B 2900 60 72 57 3.5 100×65 45 480
100 70 68 3.8
120 68 67 4.8
1450 30 18 50 2 5.5 360
50 17.5 63 2
60 17 64 2.5
TJU100-65-250 2900 60 87 60 3.5 100×65 45 550
100 80 68 3.8
120 74.5 67 4.8
1450 30 21.3 50 2 7.5 420
50 20 65 2
60 19 64 2.5
TJU100-65-315A 2900 60 105 48 3 100×65 55 670
100 100 62 3.6
120 98 64 4.2
1450 30 26.2 44 2 7.5 580
50 25 58 2
60 24.5 60 2.5
TJU100-65-315 2900 60 133 63 3 100×65 75 670
100 125 65 3.6
120 118 62 4.2
1450 30 34 60 2 11 580
50 32 64 2
60 30 63 2.5
TJU125-100-200 2900 120 57.5 54 4.5 125×100 55 660
200 50 68 4.5
240 44.5 61 5
1450 60 14.5 59 2.5 11 540
100 12.5 72 2.5
120 11 71 3
TJU125-100-250A 2900 120 62 63 3.8 125×100 55 850
200 60 75 4.2
240 58 74 5
1450 60 15.5 59 2.5 11 660
100 15 72 2.5
120 14.5 71 3
TJU125-100-250B 2900 120 72 63 3.8 125×100 75 850
200 70 75 4.2
240 68 74 5
1450 60 18 59 2.5 15 660
100 17.5 72 2.5
120 17 71 3
TJU125-100-250 2900 120 87 57 3.8 125×100 75 850
200 80 68 4.2
240 72 67 5
1450 60 21.5 56 2.5 15 660
100 20 62 2.5
120 18.5 58 3
TJU125-100-315A 1450 60 26.2 57 2.5 125×100 18.5 950
100 25 68 2.5
120 24.5 67 3
TJU125-100-315 1450 60 33.5 66 2.5 125×100 22 950
100 32 77 2.5
120 30.5 68 3
TJU125-100-400A 1450 60 42 56 2.5 125×100 30 1050
100 40 62 2.5
120 38 58 3
TJU125-100-400 1450 60 52 63 2.5 125×100 37 1050
100 50 75 2.5
120 48.5 72 3
TJU150-125-250 1450 120 22.5 61 3 150×125 22 632
200 20 67 3
240 17.5 63 3.5
TJU150-125-315 1450 120 34 72 2.5 150×125 45 700
200 32 74 2.5
240 29 75 3
TJU150-125-400A 1450 120 42 61 2.5 150×125 45 1180
200 40 70 2.8
240 38 63 3.5
TJU150-125-400 1450 120 53 61 2.5 150×125 55 1180
200 50 70 2.8
240 46 63 3.5
TJU200-150-250 1450 240 21.5 67 3.5 200×150 55 700
400 20 79 4.3
460 17.5 77 5
TJU200-150-315 1450 240 37 67 3 200×150 75 1180
400 32 78 3.5
460 28.5 75 4
TJU200-150-400A 1450 240 42 67 3 200×150 90 1420
400 40 78 3.8
460 38 75 4.5
TJU200-150-400 1450 240 55 68 3 200×150 110 1420
400 50 73 3.8
460 45 77 4.5
TJU250-200-250 1450 600 22 78 4.1 250×200 55 1300
800 20 82 5
960 16 81 6
TJU250-200-315 1450 600 34 76 4.8 250×200 90 2050
800 32 80 5.5
960 28 79 6.4
TJU250-200-400A 1450 600 42 59 3.5 250×200 110 2500
800 40 72 4.3
960 38 71 5
TJU250-200-400 1450 600 54.5 59 3.5 250×200 160 2500
800 50 72 4.3
960 39 71 5
TJU300-250-315 1450 1550 35 68 3.6 300×250 220 2980
1400 32 84 4.5
1300 26 75 5.4
TJU300-250-400 1450 1550 55 65 4.1 300×250 250 5000
1400 50 78 5
1300 42.5 75 6







Previous productTCGB Non-leakage magnetic heat pump

Next Product:暂无!
