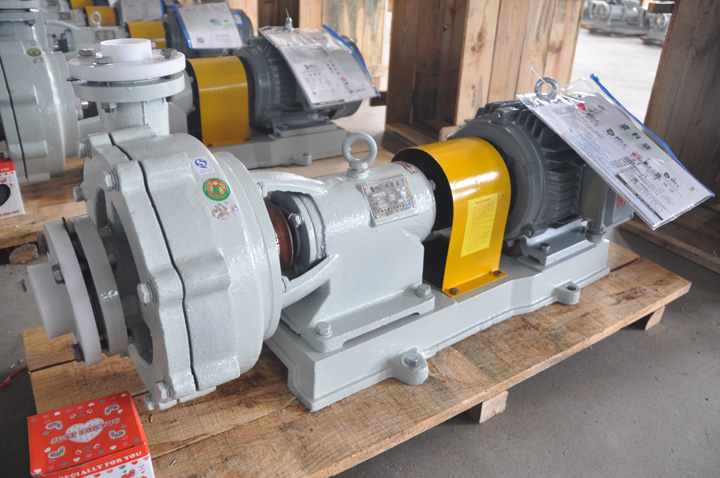

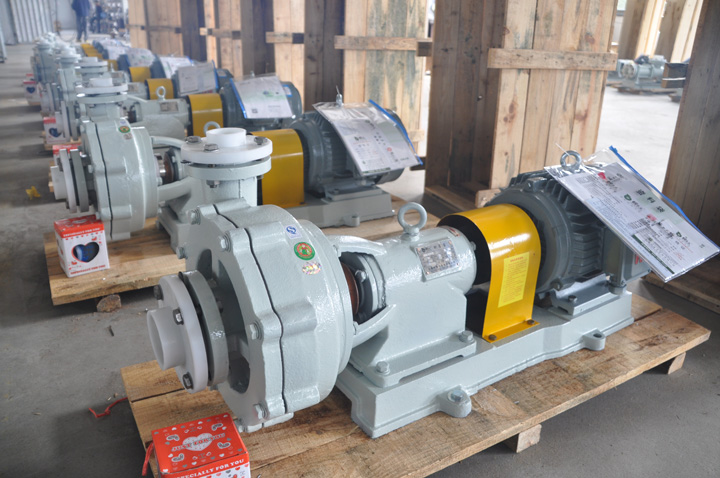

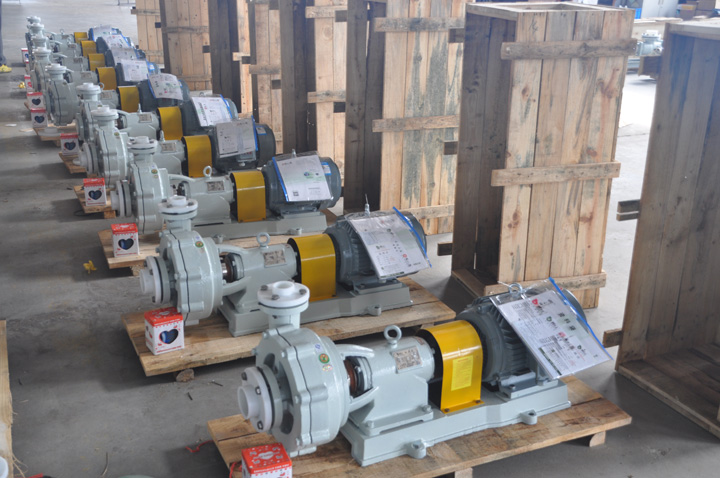

TMU-ZKfluorine lined anti-corrosion abrasion resistance centrifugal pump

	Selection of color

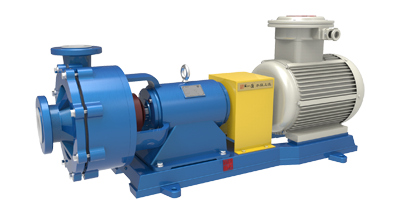

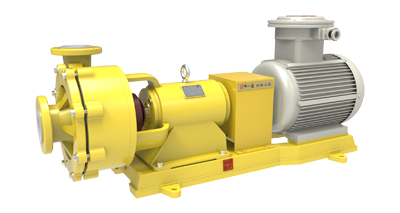

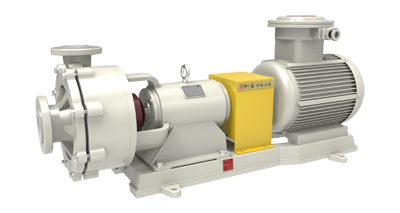

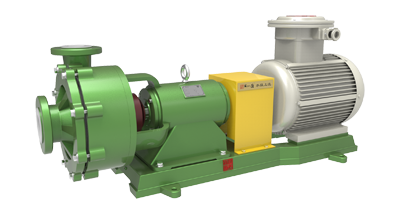

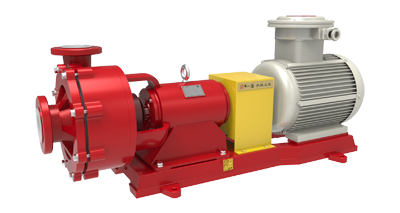

		Tang silver Tang yellow Tang Blue Tang red Tang Green

Meaning	TMU-ZK50-30
T	Code of enterprise
M	Anti-corrosion and abrasion resistance
U	Engineering plastic
ZK	Impurity pump
50	The inlet dia is 50mm
30	Nominal dia of impeller is 30mm

一、Product Introduction：

Features：
1.Strong abrasion resistance：All flow parts are made from stainless steel lined with UHMW-PE. Abrasion resistance of UHMW-PE material leads the rank of all plastic materials, which four times higher than Pa66's and PTFE’s, seven times to ten times higher than cabon steel’s and stainless steel’s.
2.Strong feature of resistance to shock：The impact strength of UHMW-PE is in the first place of general engneering plastic materials, which is five times higher than ABS, and can keep stable even though in the environment of 196℃ below zero.
3.Superor anti-corrosion：The pump can transfer any kinds of corrosive medium(acid, alkali, salt) and organic solvent under certain temperature and concentration.Because of the stable chemical performance of UHMW-PE, this pump can be used on food industry as well.
Application：
1.Fertilizer industry：slute acid, waste water, sea water, fluorosilicic acid，phosphric acid fluid, etc, transfering
2.Non-ferrous metal smelting industry
3.Chemical industry：all kinds of pure liquids or fluids of sulfuric acid,hydrochloric acid,alkali, oil.
4.Chlor-alkali industry
5.Water treatment industry：pure water, high purity water, waste water, etc.
Performance range：design pressure：1.6Mpa、flow:2-3000m3/h、head：12-125m、power：1.5-750kw
Applicable temperature：-20～90℃, can be up to 180℃ if using new type material.

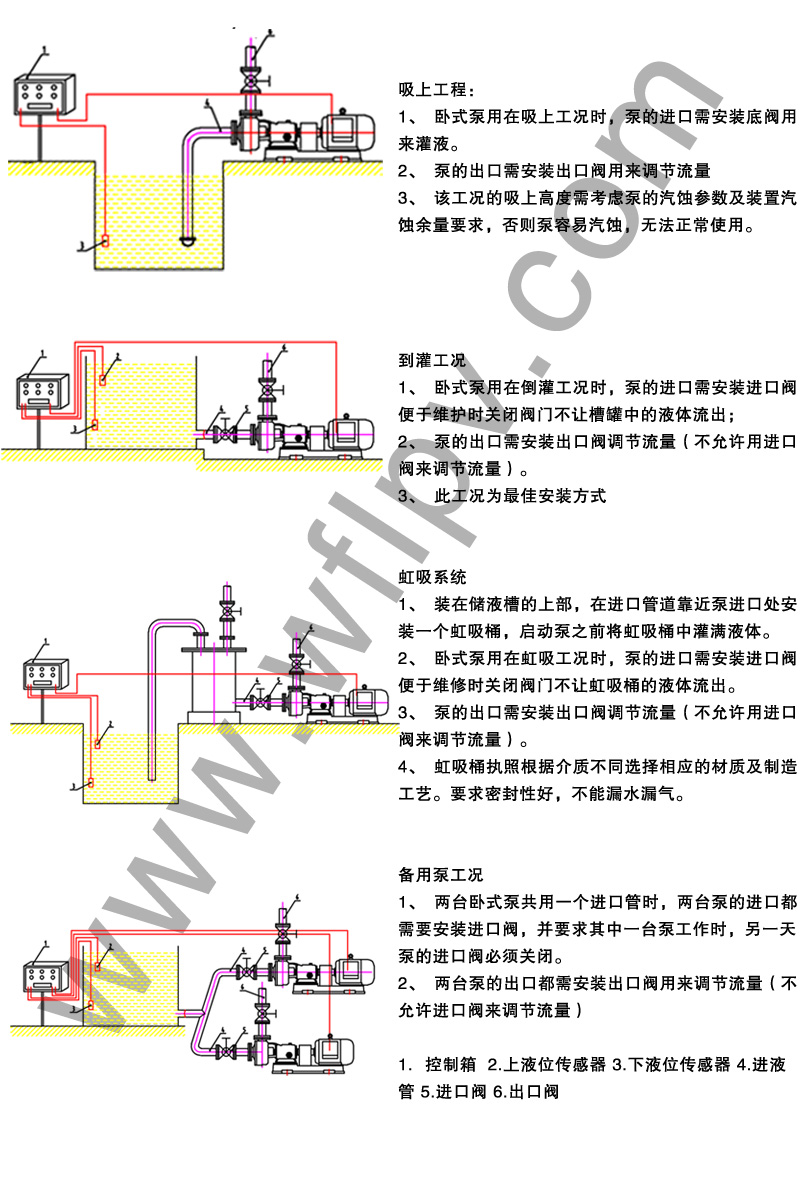

NOTES: No idling running. Please indicate during ordering if the proportion of medium is largger than 1.3mg/cm3.

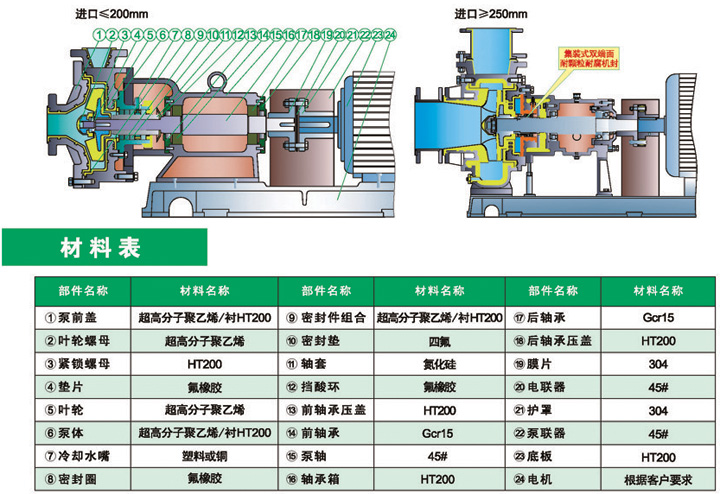

二、Structure drawing

Part	Material	Part	Material	Part	Material
1.front pump cover	UHMWPE/lined HT200	9.sealing assembly	UHMWPE/lined HT200	17.back bearing	Gcr15
2.impeller nut	UHMWPE	10.gasket	PTFE	18.gland of back bearing	HT200
3.lock nut	HT200	11.shaft sleeve	silicon nitride	19.diaphragm	304
4.pad	fluorubber	12.blocking-acid ring	fluorubber	20.electric coupling	45#
5.impeller	UHMWPE	13.gland of front bearing	HT200	21.shield	304
6.pump body	UHMWPE/ lined HT200	14.front bearing	Gcr15	22.pump coupling	45#
7.cooling water faucet	plastic or copper	15.pump shaft	45#	23.base plate	HT200
8.gasket	fluorubber	16.bearing box	HT200	24.motor	per client request

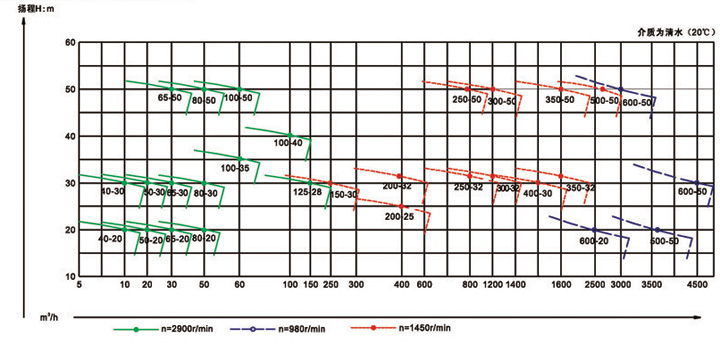

三、Performance Curve：

四、Performance data sheet：

Type	Flow m3/h	Head m	Inlet mm	Outlet mm	NPSH m	Speed r/min	Power kw	Weight Kg
TMU-ZK40-20	5	22	40	32	3	2900	3	100
	10	20
	12	18
TMU-ZK40-30	5	32	40	32	3	2900	4	105
	10	30
	12	27
TMU-ZK50-20	12	22	50	40	3	2900	4	130
	20	20
	25	17
TMU-ZK50-30	12	32	50	40	3	2900	5.5	150
	20	30
	25	28
TMU-ZK65-20	20	13	65	50	3.5	2900	5.5	150
	30	20
	35	18
TMU-ZK65-30	20	32	65	50	3.5	2900	7.5	150
	30	30
	35	18
TMU-ZK65-50	20	52	65	50	3.5	2900	15	280
	30	50
	35	47
TMU-ZK65-80	15	82	65	50	4.5	2900	18.5	450
	25	80
	35	72
TMU-ZK80-35	30	37	80	65	3.5	2900	15	260
	45	35
	55	30
TMU-ZK80-20	35	22	80	65	4	2900	11	250
	50	20
	60	17
TMU-ZK80-30	35	32	80	65	3.5	2900	15	250
	50	30
	60	25
TMU-ZK80-50	35	52	80	65	4	2900	18.5	280
	50	50
	55	45
TMU-ZK80-80	35	82	80	65	5	2900	18.5	540
	50	80
	60	72
TMU-ZK100-35	50	37	100	80	4	2900	18.5	345
	60	35
	80	30
TMU-ZK100-50	50	52	100	80	4	2900	22	380
	60	50
	70	45
TMU-ZK100-40	70	45	100	80	4	2900	30	440
	100	40
	110	35
TMU-ZK125-28	70	32	125	100	5	2900	30	400
	140	28
	150	22
TMU-ZK150-30	120	34	150	125	4	1450	45	840
	250	30
	300	26
TMU-ZK200-25	240	28	200	150	5.5	1450	75	1180
	400	25
	500	20
TMU-ZK200-32	240	39	200	150	5.5	1450	75	1180
	400	32
	500	26
TMU-ZK250-32	480	35	250	200	7.4	1450	132	1680
	800	32
	960	28
TMU-ZK250-50	480	53	250	200	7.6	1450	200
	800	50
	960	46
TMU-ZK300-32	760	35	300	250	9.5	1450	200
	1200	32
	1440	28
TMU-ZK300-50	760	53	300	250	9.6	1450	315
	1200	50
	1440	46
TMU-ZK350-32	1100	35	350	350	6.7	1450	250
	1600	32
	1920	27
TMU-ZK350-50	1100	53	350	350	6.7	1450	400
	1600	50
	1920	45
TMU-ZK400-30	1000	35	400	350	6.2	980	280	4000
	1500	30
	2000	23
TMU-ZK500-20	3000	25	500	500	7.1	735	350	5200
	3600	20
	3800	18
TMU-ZK500-50	1600	60	500	450	7.1	980	500	5000
	2500	50
	1825	25
TMU-ZK600-20	2500	27	600	500	6.4	585	315	6500
	2400	17
	3600	20
TMU-ZK600-30	4000	33	600	500	7.2	735	750	6500
	4500	30
	5000	26
TMU-ZK600-50	2500	55	600	500	6.4	735	750	6500
	3000	50
	3700	40
